1. Main Specification
2.1 Specification
Voltage: 220V, 230V, 240V.
Current: 1.5 (6) A, 5 (20) A, 5 (80) A, 5 (100) A, 10 (40) A, 15 (60) A, 20 (80) A, 30 (100) A.
Accuracy Class: 1.0 or 2.0.
Frequency:50Hz or 60Hz.
2.2 Basic Error
Current Value | Power Factor | Limit of Error (%) | |
Class 1.0 | Class 2.0 | ||
0.05Ib 0.1Ib~Imax | 1.0 | ±1.5 ±1.0 | ±2.5 ±2.0 |
0.1Ib | 0.5 (inductive) 0.8 (capacitive) | ±1.5 | ±2.5 - |
0.2Ib~Imax | 0.5 (inductive) 0.8 (capacitive) | ±1.0 | ±2.0 - |
2.2.1 Starting Current: Active£0.004Ib.
2.2.2 Creeping: When the voltage applied to the voltage circuit is 115% Un and the current in the current circuit is 0, the active pulse output of the meter is not more than 1 pulse.
3. Main Technical Indexes
3.1 Operating voltage range: 0.9Un~1.1Un, operating temperature range: -25℃~55℃.
3.2. Relative humidity: 25%~95%.
3.3 Power Consumption: Active power consumption in each phase of voltage circuit<1.5W, apparent power consumption<10VA.
3.4 The Terminal block is made of bakelite, and the meter cover and housing are made of polycarbonate, so the meter is excellent in mechanical strength and insulativity.
4.Main functions
4.1 Energy measuring
The meter measures total active energy which includes both forward and reverse energy.
4.2 Output Interface
With optical coupler isolated active passive pulse output interface., the pulse indicator blinks
when there is a pulse.
4.3 Power Supply Indication
The light marked POWER will be continuously on to indicate there is power supply.
4.4 Display
The meter displays energy data by register or LCD display

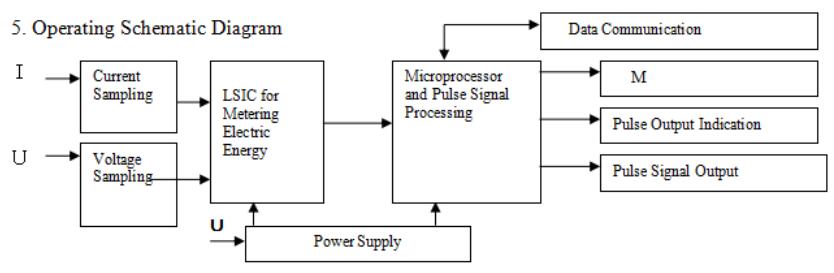

6. Installation and Connection

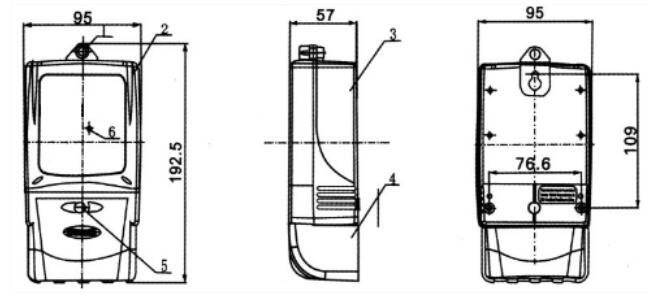

6.1 Physical Dimension Figure:

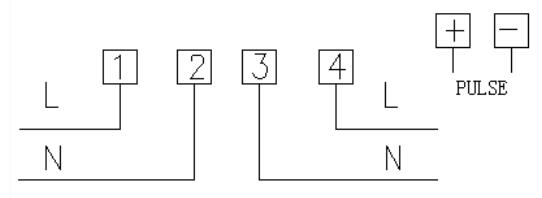

6.1 Wiring Diagram
