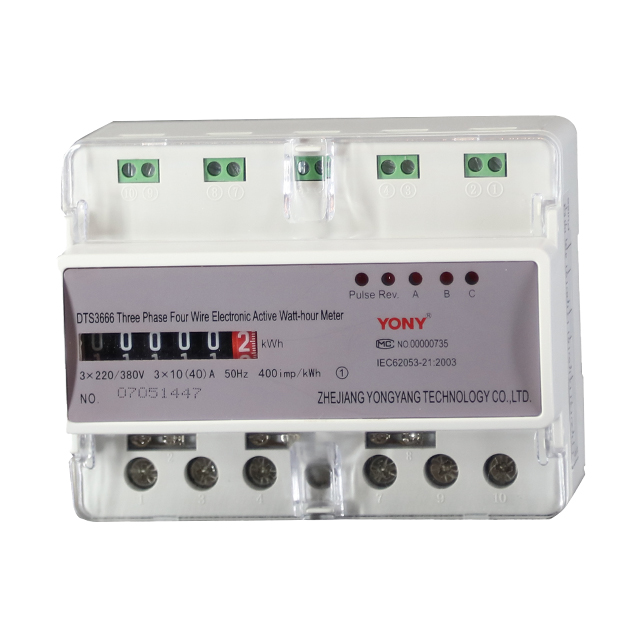

DTS3666
YONY OR OEM
I. Specifications and Parameters
1.Specifications
TYPE | CLASS | RATED VOLTAGE | STANDARD CURRENT |
Three Phase Three Wire | Class 1.0 | 3×100V | 3×1.5(6)A |
3×380V | 3×1.5(6)A | ||
Three Phase Four Wire | 3×57.7/100V | 3×1.5(6)A | |
3×220/380V | 3×1.5(6)A | ||
3×2.5(10)A | |||
3×5(20)A | |||
3×10(60)A 3×15(60)A | |||
3×20(80)A 3×30(100)A |
2. Basic Error(balanced load basic error limit)
Current Value | Power Factor(COSφ) | Error limit(%) | ||
Direct Connection | CT Connection | Class1 | Class2 | |
0.05Ib≤I<0.1Ib | 0.02In≤I<0.05In | 1.0 | ±1.5 | ±2.5 |
0.1Ib≤I<Imax | 0.05In≤I<Imax | 1.0 | ±1.0 | ±2.0 |
0.1Ib≤I<0.2Ib | 0.05In≤I<0.1In | 0.5(Inductive) | ±1.5 | ±2.5 |
0.8(Capacitive) | ±1.5 | — | ||
0.2Ib≤I≤Imax | 0.1In≤I≤Imax | 0.5(Inductive) | ±1.0 | ±2.0 |
0.8(Capacitive) | ±1.0 | — |
Note:(Ib is basic current In is rated current Imax is maximum current)
The error limit(%) between each current point with unbalanced load: Class1,±2.0; Class2,±3.0
3.Starting
When the rated voltage, rated frequency and power factor is 1.0, the loaded current is 0.004Ib(class1)、0.005Ib(class2), the meter shall starts and measures energy continuously.
4.Creeping
When the voltage circuit is loaded with a voltage 1.15 times of the rated voltage and there is no current in the current circuit, the meter is supposed not to output more than one pulse.
5.Working Voltage Range
Normal Working Voltage:0.9Un~1.1Un
Working Voltage Limit:0.0Un~1.15Un
6.Power Loss
Power loss of the voltage line in each phase≤2W/10VA
Power loss of the current line in each phase≤4.0VA
7.Environment condition
standard working temperature:-10℃~+45℃,
working temperature limit:-25℃~+55℃
Storage and transport temperature limit:-25℃~+70℃
Relative humidity: annual average≤75%
8.Configuration and Dimension
9.Safety Performance
The product meets each safety index and requirement stipulated in GB/T 17215-2008
Display
10.The Energy is displayed in 7 digits, when the meter is on , it will first display the constant and then display the total energy as below.
IV.The Main Functions
1.Energy Measurement
It measures total active energy.With three phase power supply, the meter will keep measuring energy accurately even with one or two phases cut off.
2.Phase missing indication function
Three light indicators are used to indicate whether there is phase missing. Indicators A, B, and C indicate the missing of Phase A, Phase B and Phase C correspondingly.
V. Installation and Wiring

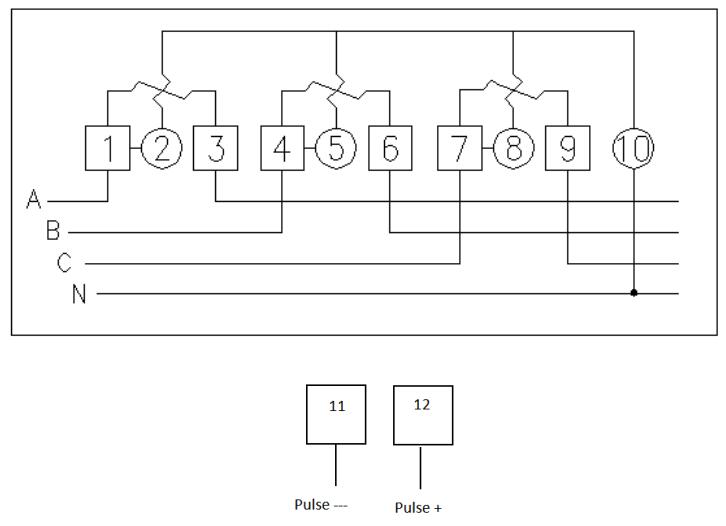

(2) Terminal Wiring:
I. Specifications and Parameters
1.Specifications
TYPE | CLASS | RATED VOLTAGE | STANDARD CURRENT |
Three Phase Three Wire | Class 1.0 | 3×100V | 3×1.5(6)A |
3×380V | 3×1.5(6)A | ||
Three Phase Four Wire | 3×57.7/100V | 3×1.5(6)A | |
3×220/380V | 3×1.5(6)A | ||
3×2.5(10)A | |||
3×5(20)A | |||
3×10(60)A 3×15(60)A | |||
3×20(80)A 3×30(100)A |
2. Basic Error(balanced load basic error limit)
Current Value | Power Factor(COSφ) | Error limit(%) | ||
Direct Connection | CT Connection | Class1 | Class2 | |
0.05Ib≤I<0.1Ib | 0.02In≤I<0.05In | 1.0 | ±1.5 | ±2.5 |
0.1Ib≤I<Imax | 0.05In≤I<Imax | 1.0 | ±1.0 | ±2.0 |
0.1Ib≤I<0.2Ib | 0.05In≤I<0.1In | 0.5(Inductive) | ±1.5 | ±2.5 |
0.8(Capacitive) | ±1.5 | — | ||
0.2Ib≤I≤Imax | 0.1In≤I≤Imax | 0.5(Inductive) | ±1.0 | ±2.0 |
0.8(Capacitive) | ±1.0 | — |
Note:(Ib is basic current In is rated current Imax is maximum current)
The error limit(%) between each current point with unbalanced load: Class1,±2.0; Class2,±3.0
3.Starting
When the rated voltage, rated frequency and power factor is 1.0, the loaded current is 0.004Ib(class1)、0.005Ib(class2), the meter shall starts and measures energy continuously.
4.Creeping
When the voltage circuit is loaded with a voltage 1.15 times of the rated voltage and there is no current in the current circuit, the meter is supposed not to output more than one pulse.
5.Working Voltage Range
Normal Working Voltage:0.9Un~1.1Un
Working Voltage Limit:0.0Un~1.15Un
6.Power Loss
Power loss of the voltage line in each phase≤2W/10VA
Power loss of the current line in each phase≤4.0VA
7.Environment condition
standard working temperature:-10℃~+45℃,
working temperature limit:-25℃~+55℃
Storage and transport temperature limit:-25℃~+70℃
Relative humidity: annual average≤75%
8.Configuration and Dimension
9.Safety Performance
The product meets each safety index and requirement stipulated in GB/T 17215-2008
Display
10.The Energy is displayed in 7 digits, when the meter is on , it will first display the constant and then display the total energy as below.
IV.The Main Functions
1.Energy Measurement
It measures total active energy.With three phase power supply, the meter will keep measuring energy accurately even with one or two phases cut off.
2.Phase missing indication function
Three light indicators are used to indicate whether there is phase missing. Indicators A, B, and C indicate the missing of Phase A, Phase B and Phase C correspondingly.
V. Installation and Wiring
(2) Terminal Wiring:
