Tiny Size Din Rail Meter with RS485 CE Standard 1pole width mini din rail kwh energy meter with super capacitor

Single Phase Tiny Size Din Rail Meter with RS485 CE Standard 1pole width mini din rail kwh energy meter with super capacitor
Availability:
Quantity:
  • DDS3666

  • YONY

Specification

DDS3666

Accuracy

Active

Class1.0

Reactive


Voltage

Rated

110/120/220/230/240V

Range

0.9Un~1.1Un

Limit

0.8Un~1.2Un

Frequency


50/60Hz

Current

Range

5(20)A ,5(25)A ,5(30)A,5(32)A ,5(60)A

Starting Current


0.4%Ib

Constant

Active

2000imp/kWh

Reactive

\

Display

Type

LCD

Digit

6+1

Power Consumption

Voltage Circuit

≤0.8W,10VA

Current Circuit

≤4VA

Communication

Interface

\

Protocol


Temperature

Working Temperature

-45℃~+55℃

Storage Temperature

-40℃~+70

Humidity


≤90%

Protection


IP54

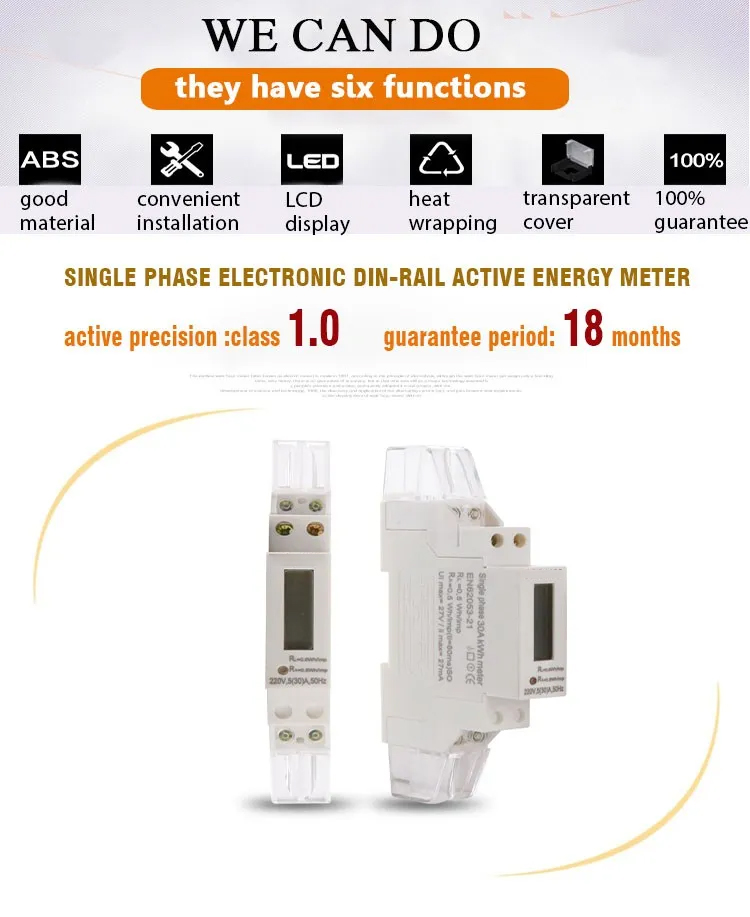

energy meter CS-532AN

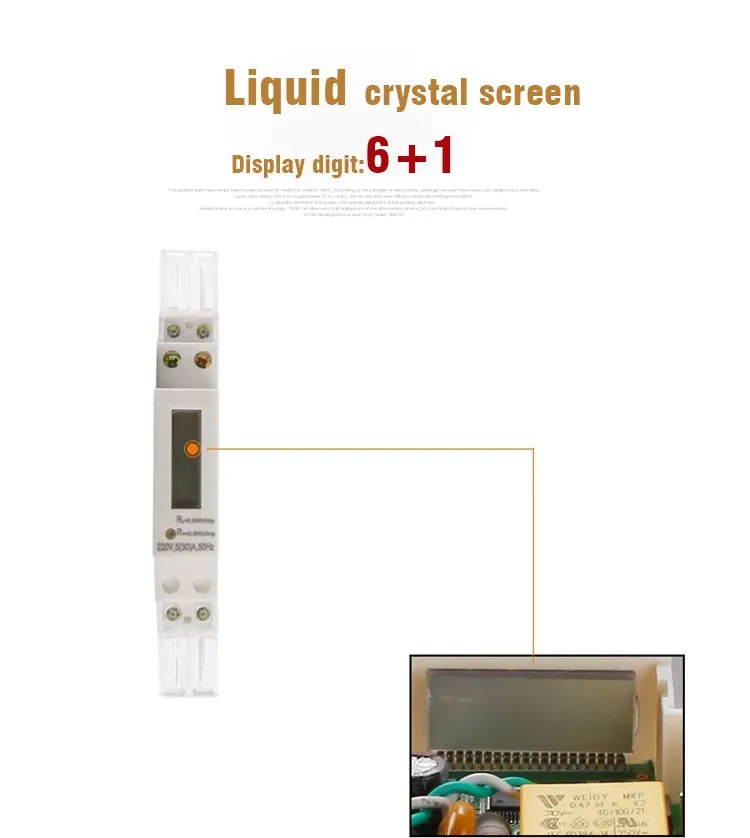

energy meter dds3666

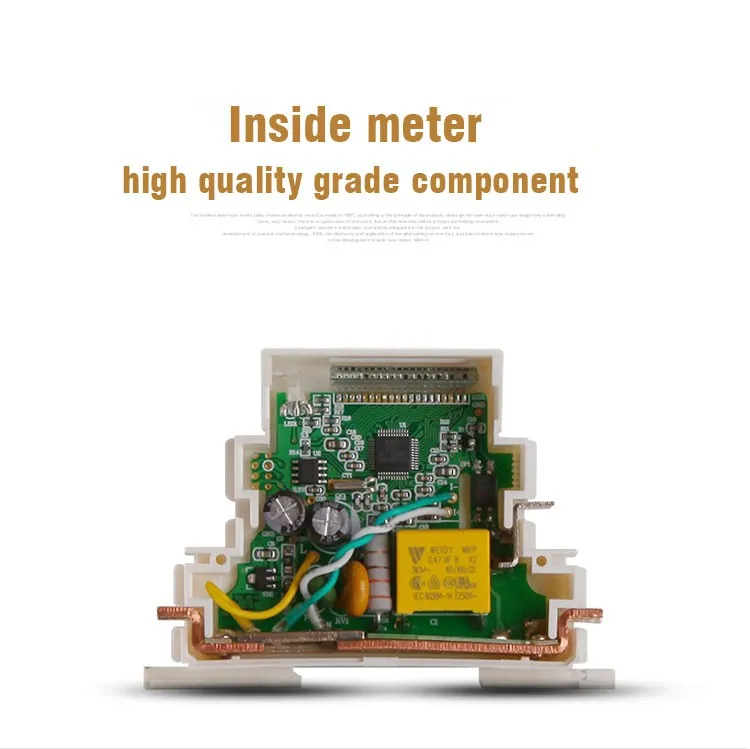

6666
