Three Phase YONY DTS3666 Cloud wifi Kwh Meter wireless Meter Remote electric meter ,energy meter RS485

1.WiFi communicatiob
2.Bi-directional measuring, accurately measure the active energy of both forward and reverse power.
3.Remotely data reading and cut on/off
Availability:
Quantity:
Inquire Add to Basket

  • DTS3666

  • YONY OR OEM ODM

Personal Data Management System

Personal Data Management System


As an architect's data management system, one of the main architects recognized by the University of China, and using more than 300 English services all over world.



     All online and pilot information

     All used on Premise and Cloud Online

     Automatically extract data from tools and tools

     There are autoreports for Cambodia's authorization

     The public accounting system

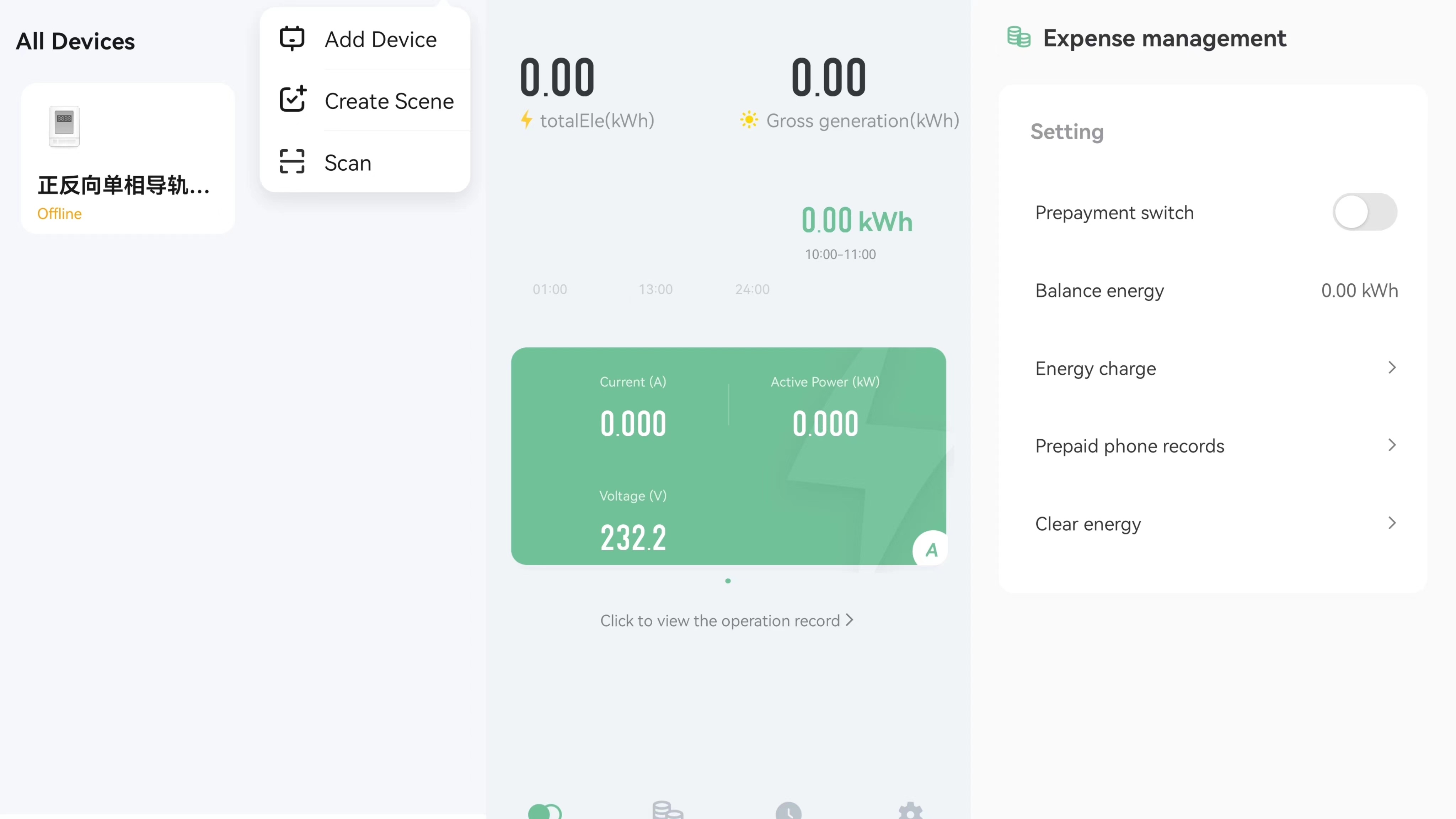

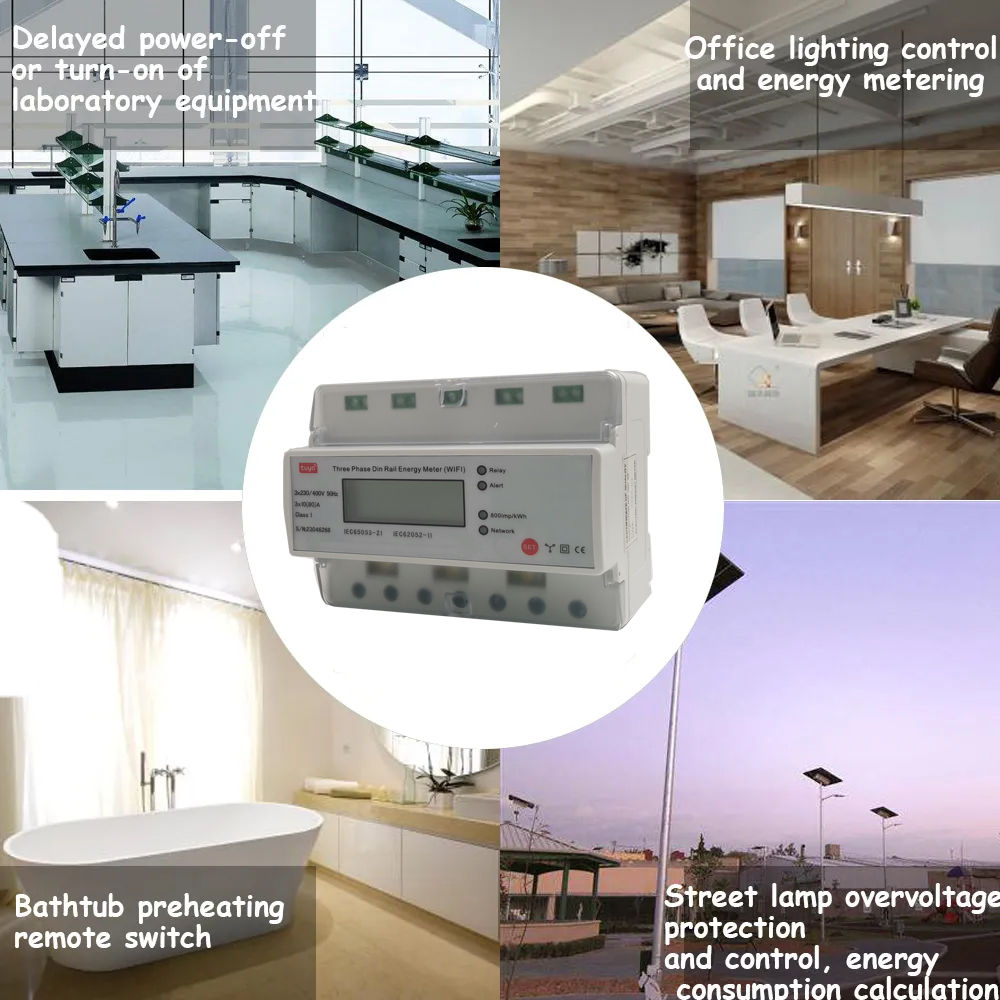

wifi smart application energy meter

Wifi Smart Digital  Counter


Wifi smart Energy Meter for modern condominiums and apartments



   Automatic data extraction by computer system

   Safe automatic power on / off

  Extract and toggle multiple counters and locations at the same   time

  Automated Data Tracking (Wifi Network & Internet)

  You do not need a data collector or live light switch

  Easy to install, maintain and have all sizes





微信图片_20230511131114

CLOUD  Service


Everybody's English lawyer is easy to do with the latest technology.

Do not burn and redo





Automatic backup and continuation

Not from Morocco, but from computers,

Always used machines

Easy to install and connect to a new computer

Use the system all the time



1.. Function and Feature


1.Wide load range ; high accuracy , reliability and sensitivity; low power loss.

2. Bi-directional measuring, accurately measure the active energy of both forward and reverse power.

3.Passive pulse output interface with optocoupler isolation.

4. Infrared communication interface. Baud rate is fixed at 1200.

5. RS485. Baud rate is 1200, but it can be set at 600 ,1200,2400, 4800 or 9600.The meter collects data in a convenient and reliable way by connecting to a concentrator which communicates by GPRS.( This function is optional.)

6. Relay to control the switching on/off of the load. ( This function is optional.)

7. The meter uses LCD in a clearer display and nicer appearance.The total consumed energy is displayed in the top line, while the other items of constant,meter NO., voltage , current,power, power factor and frequency are displayed in the lower line in turns with an interval of5 second .

8.WIFI wireless communcations

9.Din rail installation (wall mount installaton options )

\

2.Installation and Wiring

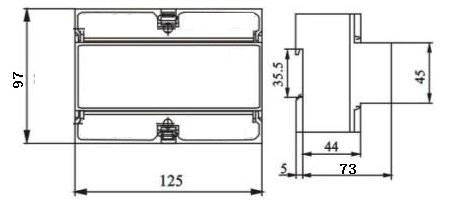

Configuration and Dimension
