DDS3666
YONY OR OEM ODM
I Function and Feature
1.Wide load range ; high accuracy , reliability and sensitivity; low power loss.
2. Bi-directional measuring, accurately measure the active energy of both forward and reverse power.
3.Passive pulse output interface with optocoupler isolation.
4. RS485. Baud rate is 1200 or 2400（DL/T645）and 4800(MODBUS), but it can be set at1200,2400, 4800 or 9600.( This function is optional.)
5. The meter uses LCD in a clearer display and nicer appearance.The total consumed energy is displayed in the top line, while the other items of constant, energy ,meter NO., voltage and current,power are displayed in the lower line in turns with an interval of 5 second .
II. Specifications and Parameter
1.Specifications
type | Class index | Reference voltage Un | Rated current |
DDS3666 | Class 1 | 220V,230V | 1.5(6)A,5(20)A, 5(32)A, 5(65)A,10(40)A, 10(60)A,15(60)A |
2. Basic error (Ib is basic current，Imax is maximum current)
load current | power factor | elementary error（%） | |
Class 1 | Class 2 | ||
0.05Ib≤I＜0.1Ib | 1.0 | ±1.5 | ±2.5 |
0.1Ib≤I≤Imax | 1.0 | ±1.0 | ±2.0 |
0.1Ib≤I＜0.2Ib | 0.5L(lag) | ±1.5 | ±2.5 |
0.8C(advance) | ±1.5 | － | |
0.2Ib≤I≤Imax | 0.5L(lag) | ±1.0 | ±2.0 |
0.8C(advance) | ±1.0 | － | |
3 Starting:
When reference voltage, reference frequency and power factor is 1.0, the meter of class 1 under 0.4%Ib, the meter can start and do measurement normally.
4 No load running:
The meter has anti-shunt running logic circuit. when voltage circuit plus 1.15 times reference voltage, and there is no current in current circuit, the test output of meter is supposed not to have more than one pulse.
5 Power consumption：
≤2W（10VA）
6 Environment condition
standard working temperature：-25℃～70℃
limit of working temperature：-25℃～80℃
note: Special requirement of working temperature limit：-40℃～80℃
Working Principle
The measuring chip samples the voltage and current signals and converts them into pulse signals which are proportional to energy. The signals are transferred to MCU chip to do the accumulation measurement, and output in passive pulse with optocoupler isolation. MCU and exchange and communicate data with the outside world meanwhile.
III. Installation and Wiring

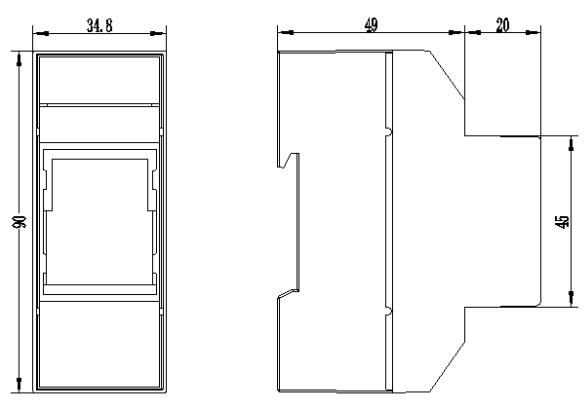

Configuration and Dimension

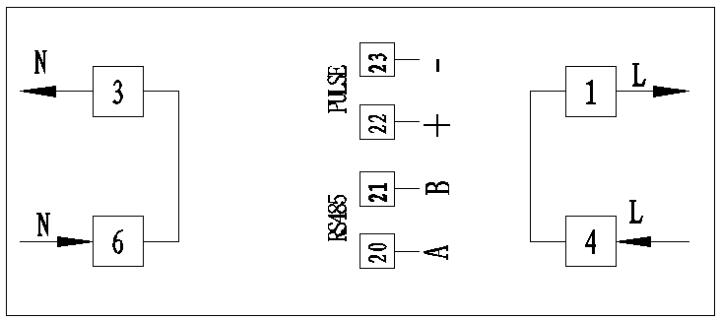

2.Wiring Diagram
Direct Connection
I Function and Feature
1.Wide load range ; high accuracy , reliability and sensitivity; low power loss.
2. Bi-directional measuring, accurately measure the active energy of both forward and reverse power.
3.Passive pulse output interface with optocoupler isolation.
4. RS485. Baud rate is 1200 or 2400（DL/T645）and 4800(MODBUS), but it can be set at1200,2400, 4800 or 9600.( This function is optional.)
5. The meter uses LCD in a clearer display and nicer appearance.The total consumed energy is displayed in the top line, while the other items of constant, energy ,meter NO., voltage and current,power are displayed in the lower line in turns with an interval of 5 second .
II. Specifications and Parameter
1.Specifications
type | Class index | Reference voltage Un | Rated current |
DDS3666 | Class 1 | 220V,230V | 1.5(6)A,5(20)A, 5(32)A, 5(65)A,10(40)A, 10(60)A,15(60)A |
2. Basic error (Ib is basic current，Imax is maximum current)
load current | power factor | elementary error（%） | |
Class 1 | Class 2 | ||
0.05Ib≤I＜0.1Ib | 1.0 | ±1.5 | ±2.5 |
0.1Ib≤I≤Imax | 1.0 | ±1.0 | ±2.0 |
0.1Ib≤I＜0.2Ib | 0.5L(lag) | ±1.5 | ±2.5 |
0.8C(advance) | ±1.5 | － | |
0.2Ib≤I≤Imax | 0.5L(lag) | ±1.0 | ±2.0 |
0.8C(advance) | ±1.0 | － | |
3 Starting:
When reference voltage, reference frequency and power factor is 1.0, the meter of class 1 under 0.4%Ib, the meter can start and do measurement normally.
4 No load running:
The meter has anti-shunt running logic circuit. when voltage circuit plus 1.15 times reference voltage, and there is no current in current circuit, the test output of meter is supposed not to have more than one pulse.
5 Power consumption：
≤2W（10VA）
6 Environment condition
standard working temperature：-25℃～70℃
limit of working temperature：-25℃～80℃
note: Special requirement of working temperature limit：-40℃～80℃
Working Principle
The measuring chip samples the voltage and current signals and converts them into pulse signals which are proportional to energy. The signals are transferred to MCU chip to do the accumulation measurement, and output in passive pulse with optocoupler isolation. MCU and exchange and communicate data with the outside world meanwhile.
III. Installation and Wiring
Configuration and Dimension
2.Wiring Diagram
Direct Connection
