DDS3666
YONY

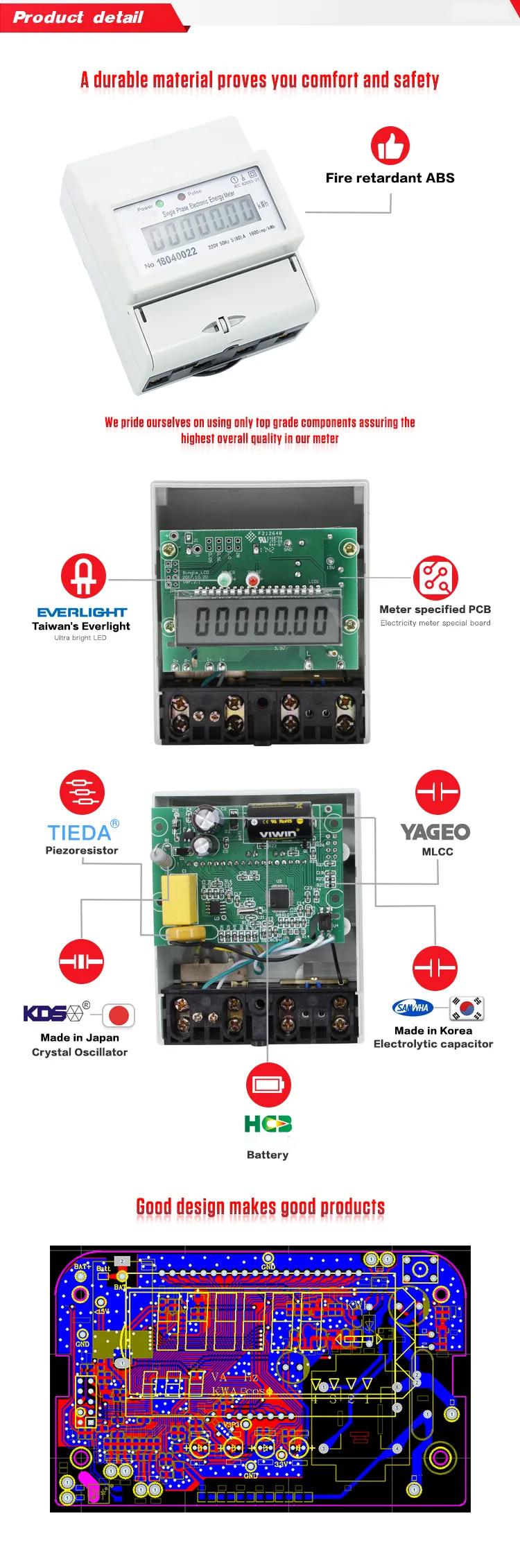

I.Function and Feature
1.Wide load range ; high accuracy , reliability and sensitivity; low power loss.
2. Bi-directional measuring, accurately measure the active energy of both forward and reverse power.
3.Passive pulse output interface with optocoupler isolation.
4. The meter uses LCD in a clearer display and nicer appearance.The total consumed energy is displayed in the top line, while the other items of constant,meter NO., voltage , current,power, power factor and frequency are displayed in the lower line in turns with an interval of 5 second .
II. Specifications and Parameter
1.Specifications
type | Class index | Reference voltage Un | Rated current |
DDS3666 | Class 1 | 220V,230V ,240V | 1.5(6)A,5(20)A,10(40)A, 15(60)A,20(80)A,30(100)A |
Technical parameters
Specification | DDS3666 | ||
Accuracy | Active | Class1.0 | Class1.0 |
Reactive | |||
Voltage | Rated | 110/120/220/230/240V | 110/120/220/230/240V |
Range | 0.9Un~1.1Un | 0.9Un~1.1Un | |
Limit | 0.8Un~1.2Un | 0.8Un~1.2Un | |
Frequency | 50/60Hz | 50/60Hz | |
Current | Range | 1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A | 1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A |
Starting Current | 0.4%Ib | 0.4%Ib | |
Constant | Active | 2000imp/kWh | 2000imp/kWh |
Reactive | \ | \ | |
Display | Type | LCD | Register |
Digit | 6+1 | 6+1 | |
Power Consumption | Voltage Circuit | ≤0.8W,10VA | ≤0.8W,10VA |
Current Circuit | ≤4VA | ≤4VA | |
Communication | Interface | Optical/Infrared/RS485 (Optional) | Optical/Infrared/RS485 (Optional) |
Protocol | MODBUS,DLT/645,IEC1107 | MODBUS,DLT/645,IEC1107 | |
Temperature | Working Temperature | -45℃~+55℃ | -45℃~+55℃ |
Storage Temperature | -40℃~+70℃ | -40℃~+70℃ | |
Humidity | ≤90% | ≤90% | |
Protection | IP54 | IP54 |
