Three phase solar Power smart meter

Views: 0     Author: Site Editor     Publish Time: 2022-01-06      Origin: Site

Three phase solar Power smart meter

I.Specifications and Parameters

1.Specifications

TYPE

CLASS

RATED   VOLTAGE

STANDARD   CURRENT

Three Phase Three Wire

Class 1.0 or Class 2.0

3×100V

3×1.5(6)A

3×380V

3×1.5(6)A

Three Phase Four Wire

3×57.7/100V

3×1.5(6)A

3×220/380V

3×1.5(6)A

3×2.5(10)A

3×5(20)A

3×10(60)A

3×15(60)A

3×20(80)A

3×30(100)A


2. Basic Error(balanced load basic error limit)

Current   Value

Power   Factor(COSφ)

Error   limit(%)

Direct   Connection

CT   Connection

Class1

Class2

0.05Ib≤I<0.1Ib

0.02In≤I<0.05In

1.0

±1.5

±2.5

0.1Ib≤I<Imax

0.05In≤I<Imax

1.0

±1.0

±2.0

0.1Ib≤I<0.2Ib

0.05In≤I<0.1In

0.5(Inductive)

±1.5

±2.5

0.8(Capacitive)

±1.5

0.2Ib≤I≤Imax

0.1In≤I≤Imax

0.5(Inductive)

±1.0

±2.0

0.8(Capacitive)

±1.0

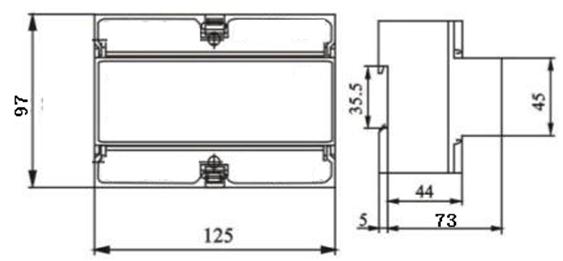

2. and Dimension


II.The Main Functions

1.Energy Measurement

It measures total active energy.With three phase power supply, the meter will keep measuring energy accurately even with one or two phases cut off.

2.Phase missing indication function

Three light indicators are used to indicate whether there is phase missing. Indicators A, B, and C indicate the missing of Phase A, Phase B and Phase C correspondingly.


III. Installation and Wiring

(1) Terminal Wiring
